K75C (K569) | Transmission

5-SPEED TRANSMISSION SHIFTING PARTS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #23_1158 | 27 parts

100%

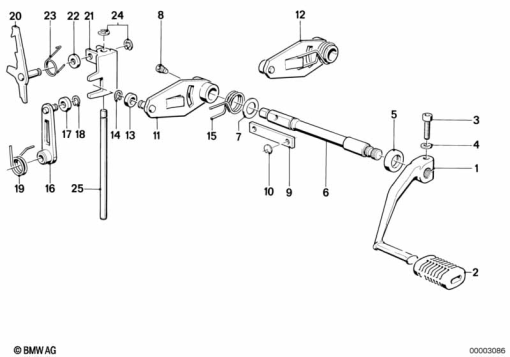

K75C (K569) 5-SPEED TRANSMISSION SHIFTING PARTS exploded view parts diagram

Parts List (27)

#	Part Number	Description	Qty
1	23 31 1 464 225	SHIFT LEVER	-
2	23 31 1 451 767	BUSHING	-
3	07 12 9 903 807	ISA SCREW - M6X25-8.8-ZNS3	-
4	07 11 9 932 073	SPRING WASHER BLACK - B6-ZN	-
	07 11 9 932 0701	SS 6MM WASHERAlternative for position 4	-
	07 11 9 932 073	BLACK SPRING WASHERAlternative for position 4	-
	07 11 9 936 439	WASHER - 5.3-140 HV-ZNSAlternative for position 4	-
5	23 12 1 451 027	SHAFT SEAL - 16X24X6,5	-
6	23 31 1 451 089	SELECTOR SHAFT	-
7	23 31 1 451 090	SHIM	-
8	23 31 1 451 091	SCREW	-
9	23 31 1 451 092	STOPPER	-
10	07 11 9 932 831	CIRCLIP - 5	-
12	23 31 1 458 028	LEVER	-
13	23 31 1 451 087	ROLL PIN	-
14	07 11 9 934 035	LOCK RING - 8X0,8	-
15	23 31 1 451 088	SPRING	-
16	23 31 1 458 029	LEVER	-
17	23 31 1 451 087	ROLL PIN	-
18	07 11 9 934 035	LOCK RING - 8X0,8	-
19	23 13 1 451 099	SPRING	-
20	23 31 1 451 106	PAWL	-
21	23 31 1 451 109	SHIFT	-
22	23 31 1 451 110	SHIM	-
23	23 31 1 451 111	SPRING	-
24	07 11 9 932 841	CIRCLIP - D=6MM	-
25	23 31 1 451 112	0.12	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
