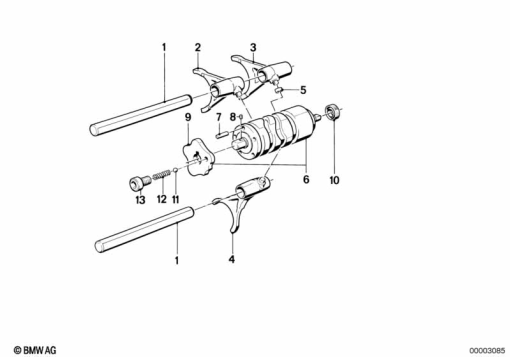

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 31 1 451 113 | AXLE | 1 | |
| 2 | 23 31 1 451 115 | SHIFTING FORK 1ST AND 2ND GEAR | 1 | |
| 3 | 23 31 1 451 117 | SHIFTING FORK 5ST GEAR | 1 | |
| 4 | 23 31 1 451 116 | SHIFTING FORK 3RD AND 4TH GEAR | 1 | |
| 5 | 23 31 1 451 114 | ROLL PIN | 1 | |
| 6 | 23 31 1 451 100 | SHIFTING ROLL | 1 | |
| 7 | 07 11 9 986 744 | ROLL PIN - B4X15,8 | 1 | |
| 8 | 07 11 9 943 211 | ROLL PIN - 3X6 | 1 | |
| 9 | 23 31 1 451 104 | STEP PLATE | 1 | |
| 10 | 23 12 2 330 141 | SHAFT SEAL - 10X18X6 | 1 | |
| – | Shaft seal 10.18.6. | Shaft seal 10.18.6. | 1 | |
| 11 | 07 11 9 986 270 | BALL - 6MM III | 1 | |
| 12 | 23 31 1 451 118 | COIL SPRING | 1 | |
| 13 | 23 31 1 451 119 | FILLISTER-HEAD SCREW | 1 |
