K75C (K569) | Seat

TOOL BOX

Diagram #52_1028 | 11 parts

100%

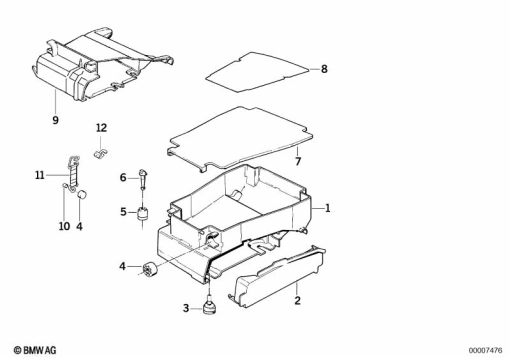

K75C (K569) TOOL BOX exploded view parts diagram

Parts List (11)

#Part NumberDescriptionQty
1
51 16 1 459 061
TOOL BOX-
2
51 16 1 459 119
MUDGUARD-
3
51 16 1 459 067
BUMP STOP-
4
51 16 1 459 064
SUSPENSION-
5
51 16 1 459 068
BUMP STOP-
6
51 16 1 459 069
51 16 1 459 069-
7
51 16 1 459 062
COVER-
9
61 35 1 459 782
BRACKET, CONTROL UNIT-
10
16 13 1 455 350
HOSE - 1000MM (meter)-
11
51 25 2 309 417
HOLDER-
12
51 25 2 308 491
CLAMP-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
