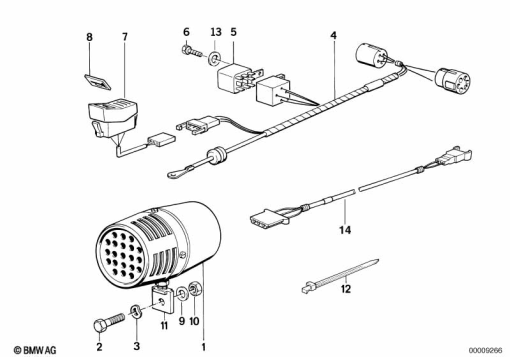

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65 60 1 243 313 | SIREN - 12V | - | |
| 2 | 07 11 9 901 039 | FILLISTER-HEAD SCREW - M10X20-8.8-ZNS | - | |
07 11 9 901 164 | HEX BOLT - M10X25-8.8-ZNSAlternative for position 2 | - | ||
| 3 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | - | |
| 4 | 61 12 1 459 265 | WIRING SIREN | - | |
| 5 | 61 31 1 373 585 | RELAY - YELLOW | - | |
61 31 1 373 588 | MINI-RELAYAlternative for position 5 | - | ||
| 6 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | - | |
| 7 | 61 31 1 459 306 | ADDITIONAL SWITCH | - | |
| 8 | 61 31 1 459 362 | SYMBOL HORN SCALE | - | |
| 9 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 10 | 07 11 9 915 558 | HEX NUT - M10-8-ZNS | - | |
| 11 | 65 60 9 056 168 | HOLDER | - | |
| 12 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |
