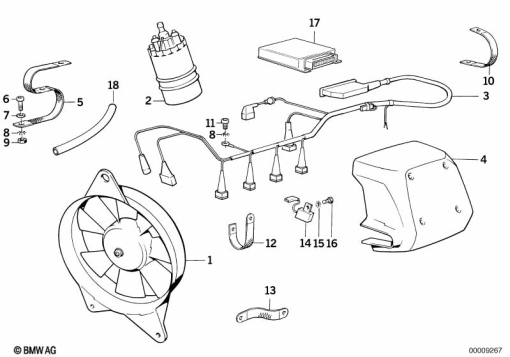

Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 40 1 461 579 | 1.39 | - | |
| 2 | 16 12 1 461 580 | FUEL PUMP (to 06/93) | - | |
| 3 | 61 11 1 459 584 | ENGINE WIRING HARNESS | - | |
| 4 | 12 13 1 459 510 | COVER | - | |
| 5 | 65 31 1 459 525 | EARTH STRAP | - | |
| 6 | 07 11 9 900 311 | FILLISTER-HEAD SCREW - M5X16-8.8-ZNS | - | |
07 11 9 901 438.1 | M6X16 SS ALLEN BOLTAlternative for position 6 | - | ||
07 11 9 904 505 | HEX BOLT - M6X22-8.8-ZNS3Alternative for position 6 | - | ||
07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIVAlternative for position 6 | - | ||
| 7 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
07 11 9 904 206 | WASHER - 10X5,3X1-200 HVAlternative for position 7 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 7 | - | ||
07 11 9 932 072 | WAVE WASHER - B6Alternative for position 7 | - | ||
| 8 | 07 11 9 936 133 | TOOTH WASHER - A6,4 | - | |
| 9 | 07 11 9 905 710 | HEX NUT - M5 | - | |
07 12 9 904 876 | HEX NUT - M6-8-ZNS3Alternative for position 9 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 9 | - | ||
| 10 | 65 31 1 459 560 | EARTH STRAP - 170MM | - | |
| 11 | 07 12 9 903 804 | ISA SCREW - M6X10-8.8-ZNS3 | - | |
| 12 | 65 31 1 459 524 | EARTH STRAP - L=150MM | - | |
| 13 | 65 31 1 459 559 | EARTH STRAP | - | |
| - | 07 12 9 905 817 | HEX NUT | - | |
| 14 | 12 31 1 356 564 | SUPPRESSION CAPACITOR ALTERNATOR - BOSCH | - | |
| 15 | 07 11 9 936 108 | TOOTH WASHER - A5,1 | - | |
| 16 | 07 11 9 913 212 | HEX BOLT - M5X8 | - | |
| 17 | 13 61 1 464 238 | CONTROL UNIT L-JETRONIC | - | |
| - | 13 61 1 338 808 | CAP NUT | - | |
| 18 | 07 11 9 975 312 | INSULATING HOSE - B 9X0,7 (meter) | - |
