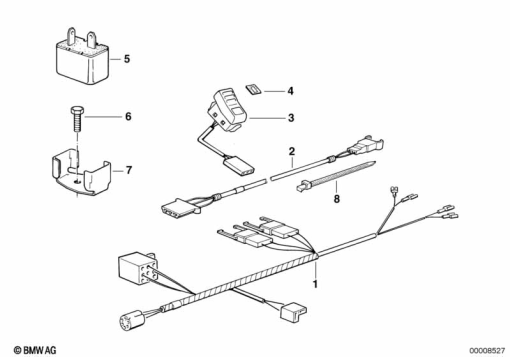

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 12 1 459 264 | WIRING OFFICIAL SIGNAL LIGHT | - | |
| 3 | 61 31 1 459 306 | ADDITIONAL SWITCH | - | |
| 4 | 61 31 1 459 361 | SYMBOL SIGNALLING LIGHT | - | |
| 5 | 63 17 1 352 854 | RELAY FOR FLASHER | - | |
| 6 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | - | |
| 7 | 63 17 1 352 855 | HOLDER | - | |
| 8 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
