Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65 61 2 300 290 | HOLDER | - | |
| 2 | 65 61 2 300 312 | GROMMET | - | |
| 3 | 63 23 1 243 442 | TURN INDICATOR - OLSA | - | |
| 4 | 63 23 1 243 443 | REFLECTOR - OLSA | - | |
| 5 | 63 21 7 160 789 | BULB - P21W/12V/21W | - | |
63 21 7 160 790 | LONGLIFE BULBAlternative for position 5 | - | ||
63 21 6 926 920 | LONGLIFE BULB - P21W/12V/21WAlternative for position 5 | - | ||
63 21 7 160 790 | LONGLIFE BULBAlternative for position 5 | - | ||
| 6 | 63 23 1 243 446 | GASKET - OLSA | - | |
| 7 | 63 23 1 243 445 | LENS - OLSA | - | |
| 8 | 07 11 9 907 643 | FILLISTER HEAD SCREW - M3,5X25 | - | |
| 9 | 52 53 2 303 127 | TAIL PART LOWER - BLACK MATT | - | |
| 10 | 07 11 9 904 357 | HEX BOLT - M6X16-8.8-ZNS3 | - | |
| 11 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 11 | - | ||
| 13 | 07 11 9 905 710 | HEX NUT - M5 | - | |
| - | 07 12 9 905 817 | HEX NUT | - |

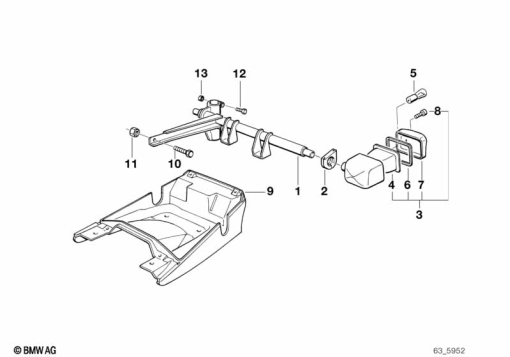

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
