K75C (K569) | Fuel Preparation

TOP AIR CLEANER HOUSING/AIR-FLOW SENSOR

Diagram #13_0518 | 12 parts

100%

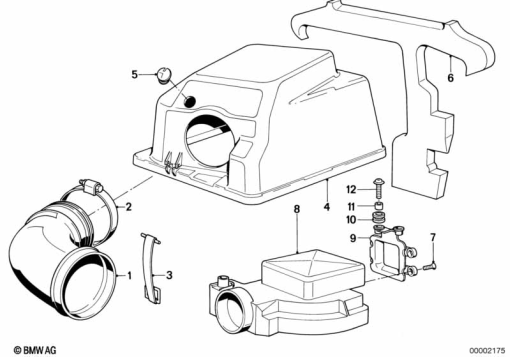

K75C (K569) TOP AIR CLEANER HOUSING/AIR-FLOW SENSOR exploded view parts diagram

Parts List (12)

#Part NumberDescriptionQty
1
13 31 1 460 563
HOSE ASSY-
2
13 72 1 460 505
HOSE CLAMP - D=72-
3
13 72 1 460 488
SPRING-
4
13 72 1 460 338
AIR CLEANER HOUSING TOP-
5
13 72 1 460 802
BLIND PLUG-
13 72 1 464 075
BADGEAlternative for position 5-
7
52 10 1 817 063
COUNTERSUNK HEAD SCREW - M6X12-
8
13 62 1 460 447
VOLUME AIR FLOW SENSOR-
9
13 62 1 460 738
HOLDER-
10
07 14 7 267 586
RUBBER GROMMET-
11
31 42 1 236 241
BUSH-
12
13 72 1 460 964
FILLISTER HEAD SCREW-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
