K75C (K569) | Fuel Preparation

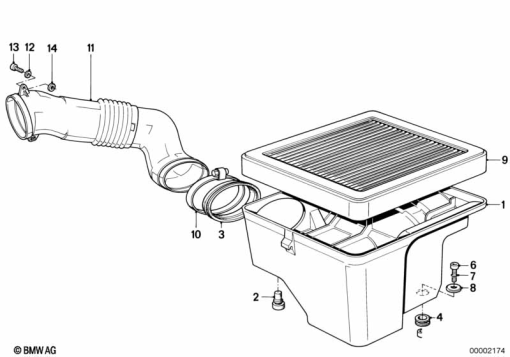

BOTTOM AIR CLEANER HOUSING/AIR CLEANER
Diagram #13_0516 | 13 parts | 2 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 72 1 460 339 | AIR CLEANER HOUSING BOTTOM | 1 | |
| 2 | 13 72 1 460 894 | BUMP STOP | 1 | |
| 3 | 13 72 1 460 754 | GASKET | 1 | |
| 4 | 13 72 1 460 448 | RUBBER GROMMET | 1 | |
| 5 | 31 42 1 232 241 | BUSH | 1 | |
| 6 | 07 12 9 904 067 | ISA SCREW - M8X30-8.8-ZNS3 | 1 | |
| 7 | 46 71 1 451 942 | RING | 1 | |
| 8 | 11 42 1 338 494 | WASHER | 1 | |
| 9 | 13 72 1 460 337 | AIR FILTER ELEMENT | 1 | |
| 10 | 07 12 9 952 129 | HOSE CLAMP - L71-78 | 1 | |
| 11 | 13 72 1 460 524 | INTAKE SNORKEL | 1 | |
| 12 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 13 | 07 11 9 913 218 | HEX BOLT - M5X10 | 1 |
