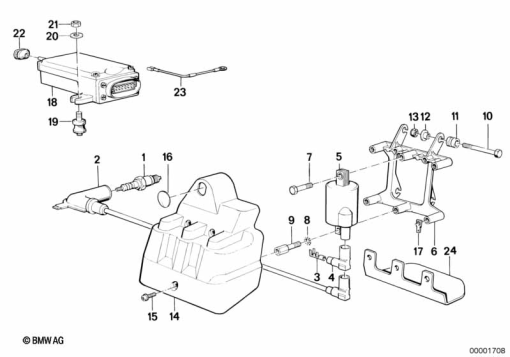

Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 12 9 062 217 | SPARK PLUG - X5DC | - | |
| 2 | 12 12 1 459 874 | IGNITION WIRE - 1 | - | |
12 12 1 459 875 | IGNITION WIRE - 2Alternative for position 2 | - | ||
12 12 1 459 876 | IGNITION WIRE - 3Alternative for position 2 | - | ||
| 3 | 12 12 1 363 327 | CIRCULAR CONNECTOR (to 09/89) | - | |
12 12 1 705 656 | CIRCULAR CONNECTOR (from 09/89)Alternative for position 3 | - | ||
| 4 | 12 12 1 459 754 | SUPPRESSING SOCKET (to 09/89) | - | |
12 12 1 289 840 | SUPPRESSING SOCKET (from 09/89)Alternative for position 4 | - | ||
| 5 | 12 13 1 459 059 | IGNITION COIL | - | |
| 6 | 12 13 1 459 042 | BRACKET,IGNITION COIL | - | |
| 7 | 07 11 9 904 505 | HEX BOLT - M6X22-8.8-ZNS3 | - | |
| 8 | 07 11 9 936 133 | TOOTH WASHER - A6,4 | - | |
| 9 | 12 13 1 459 562 | SPACER | - | |
| 10 | 07 11 9 912 364 | HEX BOLT - M6X85 | - | |
| 11 | 31 42 1 235 615 | RUBBER GROMMET | - | |
| 12 | 63 12 7 727 887 | COLLAR BUSH - 18X6,1X8-ZNNIV | - | |
| 13 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 12/96) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 13 | - | ||
| 14 | 12 13 1 459 058 | COVER | - | |
| - | 07 14 7 575 163 | SELF-LOCKING HEX NUT | - | |
| 15 | 07 11 9 907 582 | FILLISTER HEAD SCREW - M5X12-Z1 | - | |
| 16 | 12 13 1 459 529 | PLUG | - | |
| 17 | 12 13 1 459 563 | FLAT-TYPE CONNECTOR | - | |
| 18 | 12 14 1 459 021 | CONTROL UNIT | - | |
| 20 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 21 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 22 | 12 14 1 459 514 | RUBBER GROMMET | - | |
| 23 | 61 12 1 459 646 | TUBING | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
