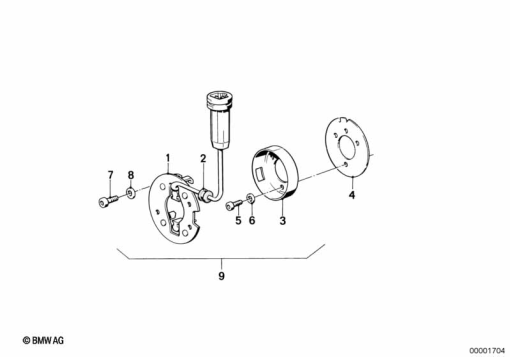

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 11 1 459 049 | IGNITION SENSOR | - | |
| 2 | 12 11 1 459 052 | GROMMET | - | |
| 3 | 12 11 1 459 077 | ROTOR | - | |
| 4 | 12 11 1 459 092 | ADJUSTING PLATE | - | |
| 5 | 07 11 9 919 752 | FILLISTER-HEAD SCREW - M4X10-8.8 ZN | - | |
| 6 | 07 11 9 904 205 | WASHER - 9X4,3X0,8-200HV | - | |
07 11 9 931 637 | FLAT WASHERAlternative for position 6 | - | ||
| 7 | 07 11 9 919 905 | FILLISTER HEAD WITH WASHER - M5X12 | - | |
| 8 | 12 11 1 459 093 | SHIM - A5,3 | - |
