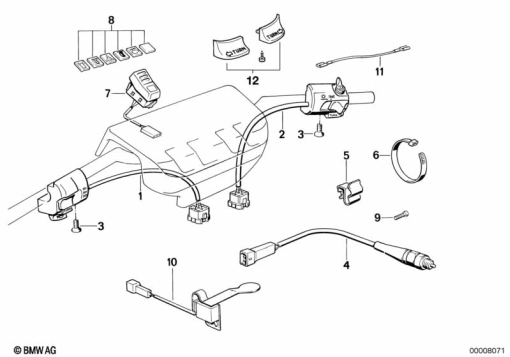

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 1 459 461 | COMBINATION SWITCH LEFT | 1 | |
| 2 | 61 31 1 459 464 | COMBINATION SWITCH WITH CONTINUOUS LIGHT | 1 | |
| 3 | 07 11 9 928 426 | CSK.FILLISTER HEAD SREW - M4X12 | 1 | |
| 4 | 61 31 1 459 569 | SWITCH | 1 | |
| 4 | 61 31 1 459 569 | SWITCH | 1 | |
| 4 | 61 31 1 459 569 | SWITCH | 1 | |
| 5 | 07 14 7 547 239 | FIXING CLAMP - A=3,5 - 6,0MM | 1 | |
| 5 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | 1 | |
| 6 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 7 | 61 31 1 459 305 | HAZARD WARNING SWITCH | 1 | |
| 7 | 61 31 1 459 306 | ADDITIONAL SWITCH | 1 | |
| 7 | 61 31 1 459 234 | SWITCH, HEATED HANDLEBAR GRIPS/HTD SEAT - L=700MM | 1 | |
| 8 | 61 31 1 459 359 | FOG TAIL LAMP SYMBOL | 1 | |
| 8 | 61 31 1 459 360 | SYMBOL HANDLE HEATET | 1 | |
| 8 | 61 31 1 459 361 | SYMBOL SIGNALLING LIGHT | 1 | |
| 8 | 61 31 1 459 362 | SYMBOL HORN SCALE | 1 | |
| 8 | 61 31 1 459 363 | CLIP WITHOUT SYMBOL | 1 | |
| 8 | 61 31 1 459 367 | SYMBOL HAZZARD WARNING | 1 | |
| 8 | 61 31 2 305 197 | FOG TAIL LAMP SYMBOL - ORANGE | 1 | |
| 9 | 12 31 2 322 411 | FILLISTER-HEAD SCREW - M5X8 (from 09/86) | 1 | |
| 10 | 61 31 1 459 588 | BRAKE LIGHT SWITCH FOOT BRAKE (from 09/86) | 1 | |
| 11 | 61 12 2 303 023 | TUBING | 1 | |
| 12 | 61 31 9 062 462 | SET: REPAIR KIT FLASHER KNOB | 1 |
