K75C (K569) | Electrical System

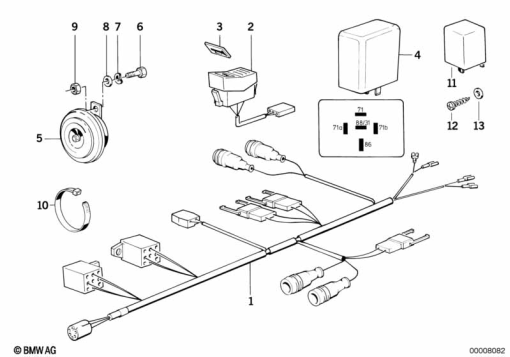

SIGNAL.LIGHT F TONE-SEQUENC CTRL SYSTEM
Diagram #61_2718 | 11 parts | 2 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 12 1 459 267 | WIRING HORN SCALE OFFICIALS LIGHT LOE | 1 | |
| 2 | 61 31 1 459 306 | ADDITIONAL SWITCH | 1 | |
| 3 | 61 31 1 459 362 | SYMBOL HORN SCALE | 1 | |
| 4 | 61 31 1 243 709 | CONTROL UNIT - LIGHTA | 1 | |
| 5 | 61 33 1 358 772 | HORN, HIGH PITCH - 500HZ | 1 | |
| 5 | 61 33 1 358 773 | HORN, LOW PITCH - 375HZ | 1 | |
| 6 | 07 11 9 901 039 | FILLISTER-HEAD SCREW - M10X20-8.8-ZNS | 1 | |
| 6 | 07 11 9 901 164 | HEX BOLT - M10X25-8.8-ZNS | 1 | |
| 7 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | 1 | |
| 9 | 07 11 9 907 088 | HEX NUT - M10 | 1 | |
| 10 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 |
