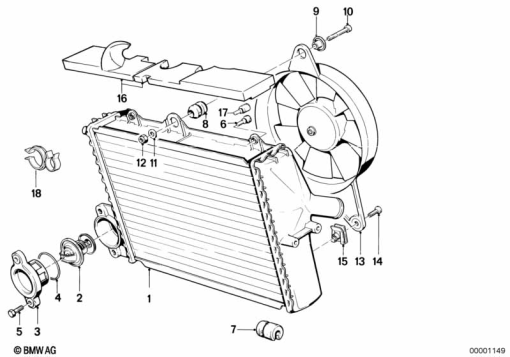

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 11 1 461 088 | RADIATOR | - | |
| 2 | 17 11 1 460 716 | THERMOSTAT | - | |
| 3 | 17 11 1 460 717 | COVER | - | |
| 4 | 17 11 1 460 718 | O-RING - 47,29X2,62 | - | |
| 5 | 17 11 1 464 440 | HEXAGON BOLT BLACK - M5X12-Z4-8.8 | - | |
| 7 | 17 11 1 460 219 | 33.51 | - | |
| 8 | 17 11 1 460 768 | RUBBER GROMMET | - | |
| 9 | 17 11 1 460 767 | SPACER BUSH | - | |
| 10 | 17 11 1 460 581 | FILLISTER-HEAD SCREW - M6X40 | - | |
| 11 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 11 | - | ||
| 12 | 07 12 9 904 886 | CAGE NUT - M6-6-ZNS3 | - | |
| 13 | 17 40 1 461 579 | 1.39 | - | |
| 14 | 07 11 9 900 816 | COUNTERSUNK HEAD SCREW - M6X16 | - | |
| 15 | 51 12 7 070 202 | C-CLIP NUT - M6-ZNS3 | - | |
| 17 | 17 11 1 460 702 | BUMP STOP | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
