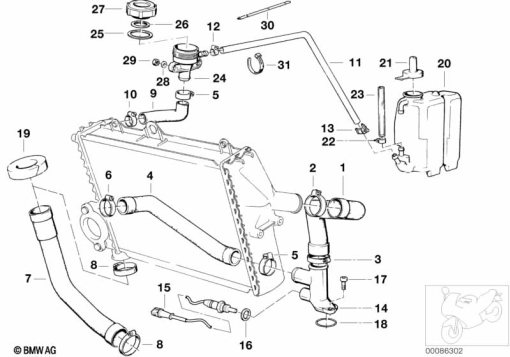

Parts List (33)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 12 1 460 692 | WATER HOSE | 1 | |
| 2 | 07 12 9 952 117 | HOSE CLAMP - L37-43 | 1 | |
| 3 | 07 12 9 952 117 | HOSE CLAMP - L37-43 | 1 | |
| 4 | 17 12 1 460 694 | WATER HOSE | 1 | |
| 5 | 64 21 8 367 179 | HOSE CLAMP - L16-30 | 1 | |
| 6 | 17 12 1 460 937 | HOSE CLAMP - D=32 | 1 | |
| 7 | 17 12 1 460 691 | WATER HOSE | 1 | |
| 8 | 07 12 9 952 117 | HOSE CLAMP - L37-43 | 1 | |
| 9 | 17 12 1 460 693 | WATER HOSE | 1 | |
| 10 | 07 12 9 952 113 | HOSE CLAMP - L28-33 | 1 | |
| 11 | 17 11 1 152 866 | WATER HOSE - 880MM | 1 | |
| 12 | 17 11 1 460 862 | HOSE CLAMP - 10MM | 1 | |
| 13 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | 1 | |
| 14 | 11 53 1 460 287 | WATER CONNECTOR | 1 | |
| 15 | 61 31 1 459 197 | TEMPERATURE SENSOR | 1 | |
| 16 | 07 11 9 963 130 | GASKET RING - A12X15,5 AL | 1 | |
| 17 | 11 14 1 460 678 | FILLISTER-HEAD SCREW - M6X25 | 1 | |
| 18 | 11 11 1 460 392 | O-RING - 27,3X2,4 | 1 | |
| 20 | 17 11 1 464 650 | EXPANSION TANK | 1 | |
| 20 | 17 11 1 464 650 | EXPANSION TANK | 1 | |
| 1 | 17 11 1 152 866 | WATER HOSE - 880MM | 1 | |
| 21 | 17 11 1 465 286 | COVER | 1 | |
| 22 | 11 73 1 277 848 | HOSE CLAMP - 11,1-13,1 | 1 | |
| 23 | 17 11 1 460 497 | PIPE | 1 | |
| 24 | 17 11 1 460 313 | CONTAINER | 1 | |
| 25 | 17 11 1 460 316 | GASKET | 1 | |
| 26 | 17 11 1 460 759 | GASKET | 1 | |
| 27 | 17 11 1 464 720 | LOCK | 1 | |
| 28 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | 1 | |
| 28 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 29 | 07 11 9 905 710 | HEX NUT - M5 | 1 | |
| 30 | 32 73 1 451 809 | CABLE TIE - L=183MM | 1 | |
| 31 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 |
