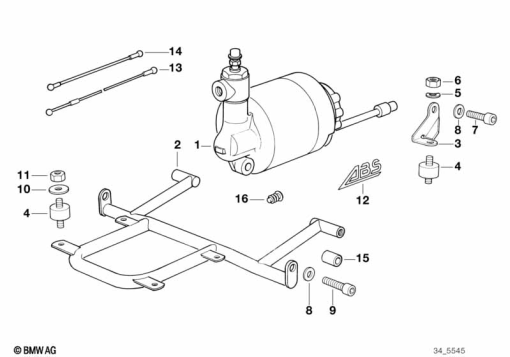

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 51 1 457 466 | HYDRAULIC UNIT, REAR | - | |
34 51 1 457 467 | HYDRAULIC UNIT, FRONTAlternative for position 1 | - | ||
| 2 | 34 52 1 458 007 | HOLDER | - | |
| 3 | 34 52 1 458 015 | SUPPORT LEFT | - | |
34 52 1 458 016 | SUPPORT RIGHTAlternative for position 3 | - | ||
| 4 | 17 11 1 113 699 | RUBBER MOUNTING | - | |
| 5 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 5 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 5 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 5 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 5 | - | ||
| 7 | 07 11 9 904 375 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNS3 | - | |
| 8 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 9 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS | - | |
| 10 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 10 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 10 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 10 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 10 | - | ||
| 11 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 12 | 51 14 1 458 105 | DECAL, RED | - | |
51 14 2 310 195 | DECAL, WHITEAlternative for position 12 | - | ||
51 14 2 310 935 | DECAL, SILVERAlternative for position 12 | - | ||
| 13 | 61 12 1 459 865 | TUBING | - | |
| 14 | 61 12 1 459 866 | TUBING | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
