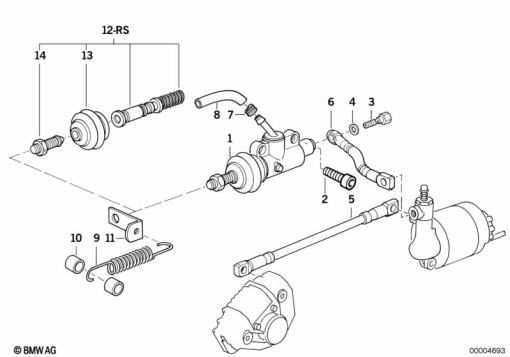

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 1 458 142 | BRAKE MASTER CYLINDER - D=12MM MAGURA | - | |
| 2 | 34 31 1 451 985 | FILLISTER-HEAD SCREW - M6X16 | - | |
| 3 | 34 32 1 242 205 | HOLLOW BOLT | - | |
| 4 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 5 | 34 32 1 457 965 | BRAKE HOSE - L=250MM | - | |
| 6 | 34 32 1 457 966 | BRAKE HOSE - L=355MM | - | |
| 7 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | - | |
| 8 | 34 32 1 457 880 | HOSE | - | |
| 9 | 35 21 1 457 049 | TENSION SPRING | - | |
| 10 | 35 21 1 454 377 | BUSH | - | |
| 11 | 35 21 1 454 375 | SUPPORT | - | |
| 12 | 34 31 2 311 064 | SET: REPAIR KIT BRAKE MASTER CYLINDER - D=12MM MAGURA | - | |
| 13 | 34 31 1 454 435 | RUBBER BOOT - MAGURA | - | |
| 14 | 34 31 1 451 885 | ADJUSTER - MAGURA | - |
