K1100LT (89V2) | Vehicle Trim

SET OF LOCKS

Diagram #51_0091 | 11 parts

100%

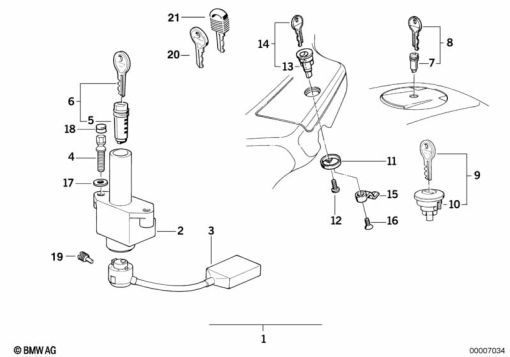

K1100LT (89V2) SET OF LOCKS exploded view parts diagram

Parts List (11)

#Part NumberDescriptionQty
2
51 25 2 323 004
HOUSING-
3
61 32 2 305 292
IGNITION/LIGHT SWITCH-
4
51 25 7 711 811
LOCK SCREW - M8X31-MK-ZNS3-
5
51 25 2 308 669
STEERING LOCK (WITH KEY CODE)-
6
51 25 2 308 668
LOCK CYLINDER WITH KEY-
11
51 25 2 309 932
RING-
17
07 11 9 904 826
Washer-
07 11 9 931 697
WASHER - 8,4Alternative for position 17-
18
31 42 1 457 133
31 42 1 457 1332
19
51 25 9 062 821
STUD BOLT - M3X5-
20
51 25 1 233 898
STANDARD KEY (CODE)-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
