K1100LT (89V2) | Vehicle Trim

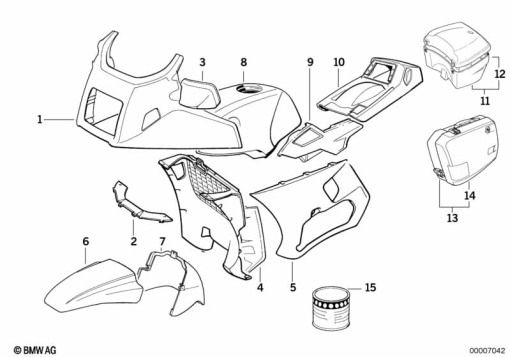

PAINTED PARTS 729 FJORDGRAU/CANYONROT
Diagram #51_0127 | 24 parts | 8 available in shop
100%
Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 325 443 | TRIM PANEL UPPER PART - FJORDGR/CANYONR | 1 | |
| 1 | 46 63 2 325 444 | UPPER CASING OF ANTENNA - FJORDGR/CANYONR | 1 | |
| 2 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 3 | 46 63 2 324 303 | MIRROR LEFT - FJORDGRAY | 1 | |
| 3 | 46 63 2 324 304 | MIRROR RIGHT - FJORDGRAY | 1 | |
| 4 | 46 63 2 324 299 | RADIOTOR TRIM PANEL CENTER - FJORDGRAY | 1 | |
| 5 | 46 63 2 325 573 | TRIM PANEL LOWER LEFT - FJORDGR/CANYONR | 1 | |
| 5 | 46 63 2 325 574 | TRIM PANEL LOWER RIGHT - FJORDGR/CANYONR | 1 | |
| 6 | 46 61 2 324 291 | FRONT MUDGUARD - FJORDGRAY | 1 | |
| 7 | 46 61 2 324 292 | FRONT MUD GUARD, REAR - FJORDGRAY | 1 | |
| 8 | 16 11 2 325 447 | FUEL TANK - FJORDGR/CANYONR | 1 | |
| 9 | 46 63 2 325 575 | COVERING LEFT - CANYONROT | 1 | |
| 9 | 46 63 2 325 576 | COVERING RIGHT - CANYONROT | 1 | |
| 10 | 52 53 2 325 449 | TAIL PART UPPER - CANYONROT | 1 | |
| 11 | 46 54 2 324 283 | TOP CASE - FJORDGRAY | 1 | |
| 12 | 46 54 2 316 651 | COVER - FJORDGRAY | 1 | |
| 14 | 46 54 2 325 453 | COVER LEFT - CANYONROT | 1 | |
| 14 | 46 54 2 325 454 | COVER RIGHT - CANYONROT | 1 | |
| 15 | 51 91 0 145 930 | BASE PAINT, TWO-COAT FJORDGRAY - 500ML 310 | 1 | |
| 15 | 51 91 0 302 069 | SET: TOUCH-UP STICK IN CANYONROT MET. - 2X12ML 343 | 1 | |
| 15 | 51 91 0 302 097 | SET: TOUCH-UP STICK FJORDGRAY MET. - 2X12ML 310 | 1 | |
| 15 | 51 91 1 052 235 | SET: SPRAY-PAINT FJORDGRAY MET. - 2X150ML 310 | 1 | |
| 15 | 51 91 1 052 411 | SET: SPRAY-PAINT CANYONROT MET. - 2X150ML 343 | 1 | |
| 15 | 51 91 2 301 354 | RULING INK SILVER - 250ML 124 | 1 |
