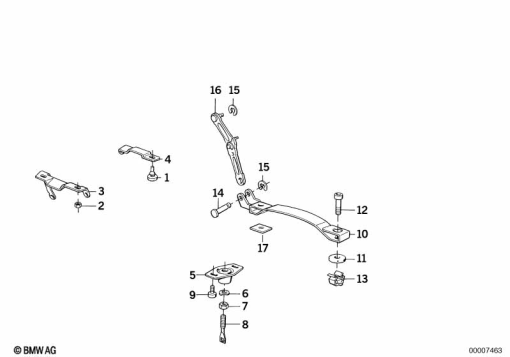

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 1 230 319 | RUBBER SUPPORT - D=18MM (to 03/93) | - | |
| 2 | 07 12 9 926 512 | CAGE NUT - M6 | - | |
| 3 | 52 53 1 453 364 | HINGE (to 03/93) | - | |
| 4 | 52 53 1 455 122 | HINGE (to 03/93) | - | |
| 5 | 52 53 1 451 209 | RUBBER MOUNTING | - | |
| 6 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 7 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | - | |
| 8 | 52 53 1 451 212 | CATCH | - | |
| 9 | 46 51 2 311 713 | FILLISTER HEAD WITH WASHER - M6X16 | - | |
| 10 | 52 53 1 451 213 | 0.45 | - | |
| 11 | 63 12 1 358 129 | RUBBER WASHER | - | |
| 12 | 07 11 9 919 532 | FILLISTER-HEAD SCREW - M6X25 | - | |
| 13 | 07 12 9 904 886 | CAGE NUT - M6-6-ZNS3 | - | |
| 14 | 52 53 1 450 691 | 0.02 | - | |
| 15 | 07 11 9 904 660 | CIRCLIP - 5-ZNS3 | - | |
07 12 9 934 319 | CLAMPING PLATE - D=6MMAlternative for position 15 | - | ||
| 16 | 52 53 1 451 650 | SUPPORT | - |
