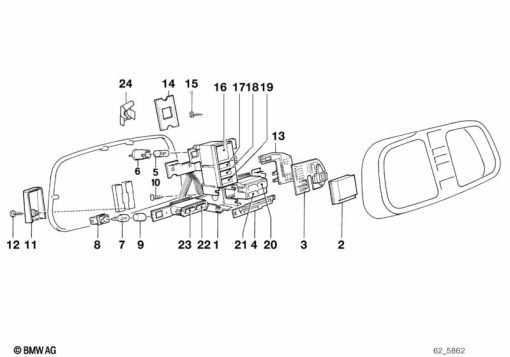

K1100LT (89V2) | Instruments Dash
INSTRUMENTS COMBINAT-.SINGLE COMPONENTS
Diagram #62_0234 | 29 parts | 2 available in shop
100%
Parts List (29)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 1 459 903 | PRINTED CIRCUIT BOARD (to 07/93) | 1 | |
| 1 | 62 11 2 305 629 | PRINTED CIRCUIT BOARD (from 07/93) | 1 | |
| 3 | 62 11 1 459 238 | CONDUCTOR PLATE GEAR INDICATION | 1 | |
| 4 | 62 11 1 459 921 | PRINTED CIRCUIT BOARD - TACHOMETER | 1 | |
| 5 | 07 11 9 978 256 | BULB | 1 | |
| 5 | 07 11 9 978 2561 | PARKING BULB | 1 | |
| 5 | 07 50 9 063 576 | BULB - 12V 4W | 1 | |
| 6 | 62 14 8 680 130 | BULB SOCKET | 1 | |
| 7 | 07 11 9 905 358 | BULB - W3W | 1 | |
| 7 | 07 11 9 978 372 | BULB 12 VOLT INSTRUMENT | 1 | |
| 8 | 62 11 1 356 714 | BULB SOCKET | 1 | |
| 9 | 07 11 9 905 358 | BULB - W3W | 1 | |
| 9 | 07 11 9 978 372 | BULB 12 VOLT INSTRUMENT | 1 | |
| 10 | 07 11 9 928 100 | COUNTERSUNK HEAD SCREW - M4X8 | 1 | |
| 11 | 62 11 1 459 473 | COVER | 1 | |
| 12 | 07 11 9 907 720 | FILLISTER HEAD SELF-TAPPING SCREW - ST3,9X13 | 1 | |
| 13 | 62 11 1 459 549 | PRINTED CIRCUIT BOARD - KRAFTSTOFFANZ. | 1 | |
| 14 | 62 11 1 459 579 | GASKET | 1 | |
| 15 | 62 11 1 459 898 | SCREW - L=16MM | 1 | |
| 16 | 62 11 1 459 638 | CONTROL SYMBOL - GREEN | 1 | |
| 17 | 62 11 1 459 637 | CONTROL SYMBOL - BLUE | 1 | |
| 18 | 62 11 1 459 636 | CONTROL SYMBOL - RED | 1 | |
| 19 | 62 11 1 459 639 | CONTROL SYMBOL - GREEN | 1 | |
| 20 | 62 11 1 459 643 | CONTROL SYMBOL - RED | 1 | |
| 21 | 62 11 1 459 642 | CONTROL SYMBOL - YELLOW | 1 | |
| 22 | 62 11 1 459 643 | CONTROL SYMBOL - RED | 1 | |
| 23 | 62 11 1 459 706 | CONTROL SYMBOL (to 07/93) | 1 | |
| 23 | 62 11 1 459 706 | CONTROL SYMBOL (from 07/93) | 1 | |
| 24 | 62 11 1 459 487 | CONTACT SPRING | 1 |
