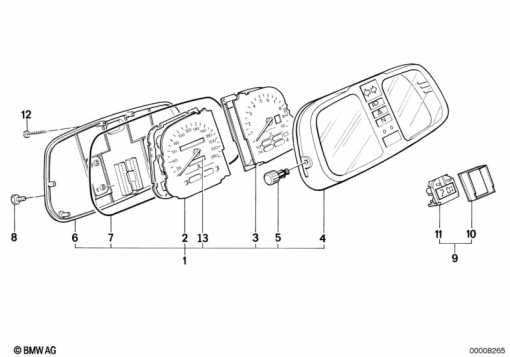

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 2 305 258 | INSTRUMENT CLUSTER - MP/H (to 07/93) | - | |
62 11 2 305 626 | INSTRUMENT CLUSTER - MP/H (from 07/93)Alternative for position 1 | - | ||
62 11 2 306 536 | INSTRUMENTS COMBINATION, SPECIAL EDITION - MP/H (from 07/93)Alternative for position 1 | - | ||
| 2 | 62 11 2 305 271 | SPEEDOMETER - MP/H | - | |
62 11 2 306 537 | SPEEDOMETER SPECIAL EDITION - MP/HAlternative for position 2 | - | ||
| 3 | 62 11 2 305 265 | REVOLUTION COUNTER | - | |
62 11 2 306 535 | REVOLUTION COUNTER SPECIAL EDITIONAlternative for position 3 | - | ||
| 4 | 62 11 1 459 919 | HOUSING - 9X | - | |
| 5 | 62 11 1 459 244 | BUTTON | - | |
| 6 | 62 11 1 459 930 | HOUSING COVER | - | |
| 7 | 62 11 1 459 232 | GASKET | - | |
| 8 | 07 11 9 915 014 | HEX BOLT WITH WASHER - M6X12-Z3-2 | - | |
| 10 | 62 11 1 459 235 | FRAME | - | |
| 11 | 62 11 1 459 368 | CLOCK | - | |
| 12 | 62 11 1 459 896 | FILLISTER HEAD SELF-TAPPING SCREW - 3,5X38 MM | - | |
| 13 | 62 11 2 305 175 | TRIP-DISTANCE RECORDER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
