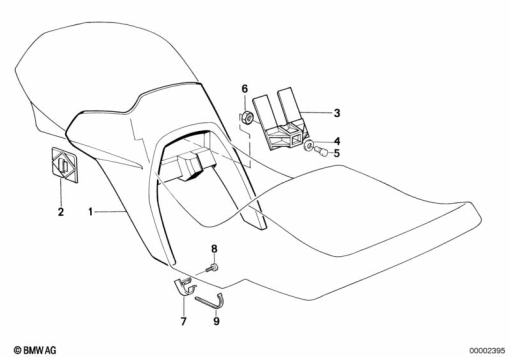

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 2 308 502 | COVERING FUEL TANK | - | |
| 2 | 16 11 2 451 616 | MOUNTING PLATE | - | |
16 11 2 455 171 | ADHESIVE FILMAlternative for position 2 | - | ||
| 3 | 16 11 2 308 173 | SUPPORTING PLATE | - | |
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 4 | - | ||
| 5 | 07 11 9 919 792 | FILLISTER-HEAD SCREW - M6X10 | - | |
| 6 | 07 12 9 926 512 | CAGE NUT - M6 | - | |
| 7 | 16 11 2 308 663 | FIXING CLAMP | - | |
| 9 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
