Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 2 307 468 | FUEL TANK PRIME COATED | - | |
16 11 2 307 468 | FUEL TANK PRIME COATED (from 01/93)Alternative for position 1 | - | ||
16 11 1 455 101 | FUEL TANK PRIME COATED (to 01/93)Alternative for position 1 | - | ||
| 2 | 16 11 2 307 408 | SET: MOUNTING PARTS SET (from 01/93) | - | |
| 3 | 16 11 2 323 615 | BUMP STOP | - | |
| 4 | 46 51 2 320 960 | SLEEVE (from 01/93) | - | |
| 5 | 46 51 2 320 962 | ROLL PIN (from 01/93) | - | |
| 6 | 16 11 2 309 403 | FILLER CAP - KAT/SHED | - | |
16 11 2 309 657 | SILVER FILLER CAP - KAT/SHED-SILVER (from 11/96)Alternative for position 6 | - | ||
| 8 | 16 11 1 453 690 | GASKET RING | - | |
| 9 | 07 11 9 904 433 | COUNTERSUNK HEAD SCREW - M4X10 | - | |
| 10 | 16 11 9 062 461 | SET: GASKET SET | - | |
| 12 | 07 11 9 918 519 | SELF TAPPING SCREW - M4X8 | - | |
| 13 | 52 53 2 307 609 | BUMP STOP | - | |
| 16 | 16 11 1 464 706 | HOSE | - | |
| 17 | 16 13 1 453 424 | VALVE | - | |
| 18 | 11 72 7 545 323 | VACUUM HOSE BLACK - 3,5X1,8 (meter) | - |

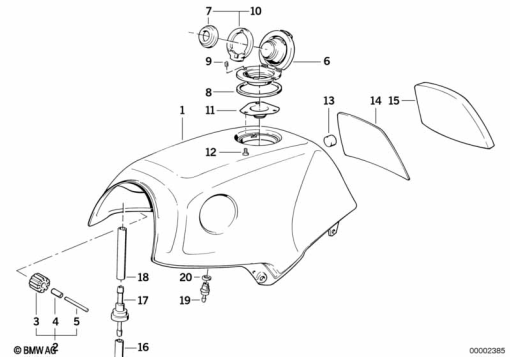

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
