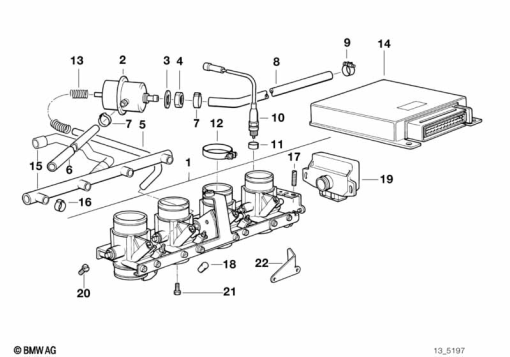

Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 54 1 461 216 | THROTTLE HOUSING ASSY | - | |
| 2 | 13 53 1 464 588 | PRESSURE REGULATOR | - | |
| 3 | 07 11 9 906 063 | WASHER - 12-200 HV-ZNS3 | - | |
| 4 | 07 11 9 922 940 | HEX NUT - M12X1,5 | - | |
| 5 | 11 72 7 545 323 | VACUUM HOSE BLACK - 3,5X1,8 (meter) | - | |
| 6 | 13 54 1 461 495 | HOSE | - | |
| 7 | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 | - | |
| 8 | 13 31 1 461 974 | HOSE | - | |
| 9 | 13 31 1 460 928 | HOSE CLAMP - D=13 | - | |
| 10 | 61 31 1 459 569 | SWITCH | - | |
| 12 | 11 61 1 460 900 | CLAMP - D=48,5 | - | |
| 14 | 13 61 1 464 479 | CONTROL UNIT MOTRONIC (to 07/93) | - | |
13 61 1 464 649 | CONTROL UNIT MOTRONIC - KAT (to 07/93)Alternative for position 14 | - | ||
| 15 | 11 15 1 461 834 | HOSE | - | |
| 16 | 13 54 1 464 179 | HOSE CLAMP - D=15 | - | |
16 12 1 180 241 | HOSE CLAMP - 15,0-17,5Alternative for position 16 | - | ||
17 11 1 460 922 | HOSE CLAMP - D=12,3MMAlternative for position 16 | - | ||
34 32 1 156 893 | HOSE CLAMP - 13,2-15,7Alternative for position 16 | - | ||
| 17 | 13 54 1 461 238 | ADJUSTER | - | |
| 18 | 13 54 7 694 924 | PROTECTION CAP | - | |
| 19 | 13 63 8 409 501 | THROTTLE VALVE SWITCH | - | |
| 20 | 13 54 1 461 261 | ADJUSTING SCREW | - | |
| 21 | 13 54 1 461 237 | ADJUSTING SCREW | - | |
| 22 | 13 54 1 464 324 | SUPPORT | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
