Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 72 1 460 339 | AIR CLEANER HOUSING BOTTOM | - | |
| 2 | 17 11 1 460 400 | BUMP STOP | - | |
| 4 | 61 13 1 243 744 | RUBBER GROMMET | - | |
| 9 | 13 72 1 460 337 | AIR FILTER ELEMENT | - | |
| 11 | 13 72 1 464 559 | INTAKE MANIFOLD | - | |
| 12 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | - | |
| 13 | 07 11 9 913 218 | HEX BOLT - M5X10 | - | |
| 14 | 13 72 1 460 488 | SPRING | - | |
| 15 | 13 62 1 461 425 | IDLE REGULATING VALVE | - |

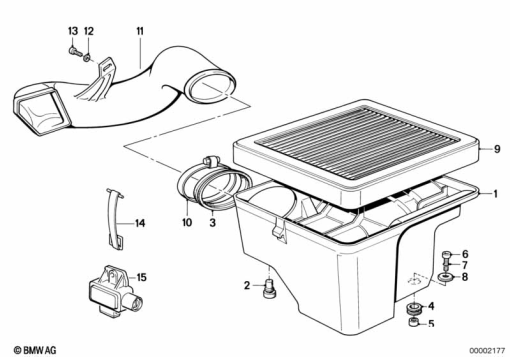

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
