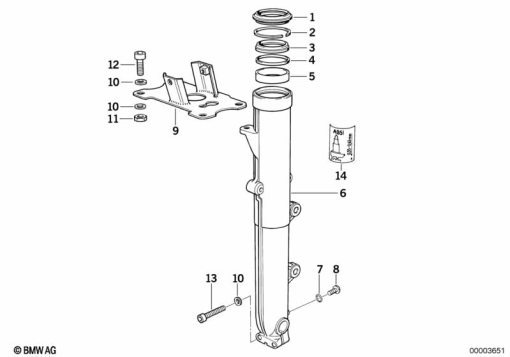

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 2 310 344 | 0.04 | - | |
| 2 | 31 42 2 310 334 | SNAP RING | - | |
| 3 | 31 42 2 310 345 | GASKET | - | |
| 4 | 31 42 2 310 335 | WASHER | - | |
| 5 | 31 42 2 310 347 | GUIDE BUSH | - | |
| 6 | 31 42 2 310 660 | INNER TUBE, BLACK, RIGHT | - | |
31 42 2 310 799 | INNER TUBE, BLACK, LEFT - ABSAlternative for position 6 | - | ||
31 42 2 332 679 | INNER TUBE, POLISHED, LEFT - ABSAlternative for position 6 | - | ||
31 42 2 332 680 | INNER TUBE, POLISHED, RIGHTAlternative for position 6 | - | ||
| 7 | 31 42 1 458 477 | O-RING - 5,28X1,78 | - | |
| 8 | 31 42 2 332 000 | INNER HEX BOLT - M6X6 | - | |
| 9 | 31 42 2 311 336 | HOLDER | - | |
| 10 | 61 33 7 653 745 | SHIM, BLACK - 8,4 | - | |
| 11 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | - | |
| 12 | 31 42 2 312 049 | FILLISTER-HEAD SCREW - M8X25 | - | |
| 13 | 31 42 2 312 042 | FILLISTER-HEAD SCREW - M8X45-8.8 SW | - | |
| 14 | 71 21 2 311 310 | LABEL - ABS (to 07/93) | - | |
71 21 2 314 920 | LABEL - ABS (from 07/93)Alternative for position 14 | - |
