K1100LT (89V2) | Front Suspension
FORK BRACE, BOTTOM/TOP

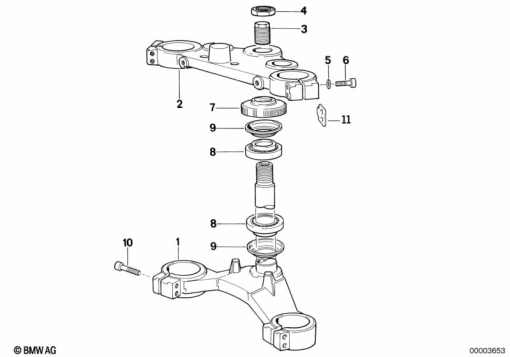

Diagram #31_0327 | 14 parts | 4 available in shop
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 2 310 214 | LOWER FORK CROSS BRACE | 1 | |
| 2 | 31 42 2 312 363 | UPPER FORK CROSS BRACE | 1 | |
| 3 | 31 42 2 310 528 | SCREW | 1 | |
| 4 | 31 42 1 457 226 | 59.55 | 1 | |
| 5 | 61 33 7 653 745 | SHIM, BLACK - 8,4 | 1 | |
| 6 | 31 42 2 312 042 | FILLISTER-HEAD SCREW - M8X45-8.8 SW | 1 | |
| 7 | 31 42 1 457 222 | KNIRLED NUT | 1 | |
| 8 | 07 11 9 985 070SET | STEERING HEAD BEARING SET | 1 | |
| 8 | 31 42 7 663 941 | TAPERED ROLLER BEARING - 28X52X16 | 1 | |
| 8 | 07 11 9 985 070SET | STEERING HEAD BEARING SET | 1 | |
| 8 | 31 42 7 663 941 | TAPERED ROLLER BEARING - 28X52X16 | 1 | |
| 9 | 31 42 1 234 509 | RING | 1 | |
| 10 | 31 42 2 312 043 | FILLISTER-HEAD SCREW - M8X30 | 1 | |
| 11 | 31 42 2 311 475 | SPACER PLATE | 1 |
