K1100LT (89V2) | Frame, Fairing, Cases

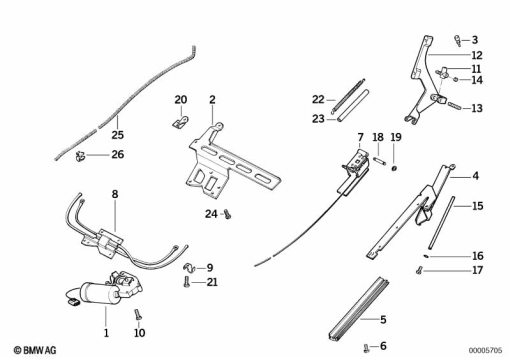

WINDSCREEN WITH ELECTRIC ADJUSTMENT
Diagram #46_0208 | 31 parts
100%
Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 67 16 2 305 094 | ACTUATOR | - | |
| 2 | 46 63 2 309 779 | PLATE | - | |
| 3 | 46 63 2 309 923 | BUMP STOP - H=5,5MM | - | |
| 4 | 46 63 2 309 887 | MOUNTING PLATE LEFT | - | |
46 63 2 309 888 | MOUNTING PLATE RIGHTAlternative for position 4 | - | ||
| 5 | 46 63 2 309 889 | RAIL LEFT | - | |
46 63 2 309 890 | RAIL RIGHTAlternative for position 5 | - | ||
| 6 | 07 11 9 900 692 | FILLISTER HEAD SCREW - M4X12 | - | |
| 7 | 46 63 2 309 771 | SLIDING PIECE - LEFT | - | |
46 63 2 309 772 | SLIDING PIECE - RIGHTAlternative for position 7 | - | ||
| 8 | 46 63 2 309 780 | PIPE | - | |
| 9 | 46 63 2 309 977 | CLAMP | - | |
| 10 | 07 11 9 907 634 | FILLISTER HEAD SCREW - M5X25 | - | |
| 11 | 46 63 2 309 961 | GUIDE BUSH | - | |
| 12 | 46 63 2 309 773 | LEVER LEFT | - | |
46 63 2 309 774 | LEVER RIGHTAlternative for position 12 | - | ||
| 13 | 07 11 9 905 431 | GRUB SCREW - M6X20 | - | |
| 14 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 15 | 46 63 2 309 775 | 0.08 | - | |
| 16 | 07 11 9 903 045 | O-RING - 6,3X2,4 | - | |
| 17 | 46 63 2 309 314 | FILLISTER HEAD SCREW | - | |
| 18 | 46 63 2 309 776 | 0.01 | - | |
| 19 | 07 11 9 932 822 | CIRCLIP - 4,0 | - | |
| 20 | 46 63 2 309 921 | SUPPORT LEFT | - | |
46 63 2 309 922 | SUPPORT RIGHTAlternative for position 20 | - | ||
| 21 | 07 11 9 907 616 | FILLISTER HEAD SCREW - M4X10-4.8-H | - | |
| 22 | 46 63 2 307 223 | TENSION SPRING | - | |
| 23 | 54 12 1 904 824 | HOSE - L=335MM | - | |
| 24 | 07 11 9 906 849 | FILLISTER HEAD SCREW - M5X10 | - | |
| 25 | 46 63 2 309 973 | OUTLET HOSE | - | |
| 26 | 61 13 1 351 044 | CABLE CLAMP - D=15/B=4 | - |
