K1100LT (89V2) | Frame, Fairing, Cases

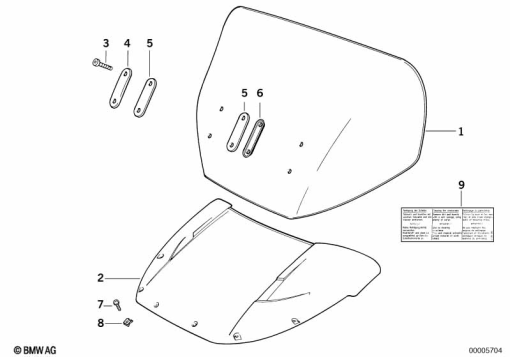

WINDSCREEN WITH ELECTRIC ADJUSTMENT
Diagram #46_0207 | 12 parts
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 307 474 | WINDSHIELD - 6MM | - | |
46 63 2 307 537 | COVER - 6MMAlternative for position 1 | - | ||
| 2 | 46 63 2 323 329 | CARRIER - PERLANTHRAZIT | - | |
46 63 2 309 178 | CARRIER - BLACKAlternative for position 2 | - | ||
| 3 | 46 63 7 651 349 | FILLISTER HEAD SCREW - M5X20 | - | |
46 63 7 690 147 | FILLISTER HEAD SCREW - M5X20 SWAlternative for position 3 | - | ||
| 4 | 46 63 2 307 537 | COVER - 6MM | - | |
| 5 | 46 63 2 307 412 | 0.02 | - | |
| 6 | 46 63 2 307 481 | PAD LOWER | - | |
| 7 | 46 63 2 309 201 | SHEET METAL SCREW - ST 4,2X19 | - | |
| 8 | 07 14 7 153 456 | SHEET METAL NUT, SELF-LOCKING | - | |
| 9 | 46 63 2 307 475 | LABEL | - |
