K1100LT (89V2) | Frame, Fairing, Cases
WHEEL COVER,REAR, LICENSE PLATE FRAME

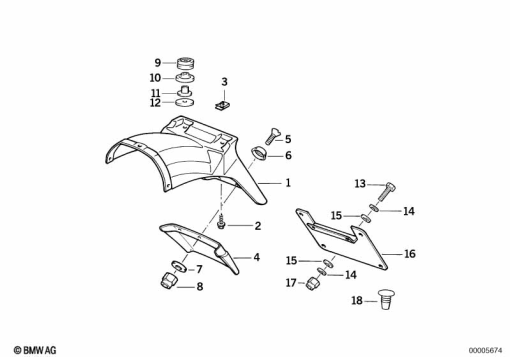

Diagram #46_0177 | 18 parts
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 2 308 719 | REGISTRATION PLATE MOUNTING | 1 | |
| 2 | 07 11 9 916 965 | HEX HEAD SCREW - ST6,3X16-C-Z1 | 1 | |
| 3 | 07 12 9 904 232 | BODY NUT - ST6,3-2-ZNS3 | 1 | |
| 4 | 46 62 2 308 544 | MUD FLAPS | 1 | |
| 5 | 46 62 2 313 516 | COUNTERSUNK HEAD SCREW - M5X16-4.8-SW | 1 | |
| 6 | 51 45 1 801 524 | WASHER | 1 | |
| 7 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | 1 | |
| 8 | 07 11 9 905 710 | HEX NUT - M5 | 1 | |
| 9 | 52 53 1 451 629 | RUBBER MOUNTING | 1 | |
| 10 | 52 53 1 455 343 | RUBBER MOUNTING | 1 | |
| 11 | 52 53 1 455 344 | BUSH | 1 | |
| 12 | 52 53 1 453 322 | SHIM | 1 | |
| 13 | 07 11 9 905 215 | HEX BOLT - M5X16-U1-8.8 | 1 | |
| 14 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | 1 | |
| 15 | 46 61 1 236 899 | RUBBER WASHER | 1 | |
| 16 | 46 62 2 308 563 | REGISTRATION PLATE MOUNTING | 1 | |
| 17 | 07 11 9 905 710 | HEX NUT - M5 | 1 | |
| 18 | 46 62 2 309 944 | PLUG | 1 |
