K1100LT (89V2) | Frame, Fairing, Cases
FOOTPEG PLATE/FOOTPEG

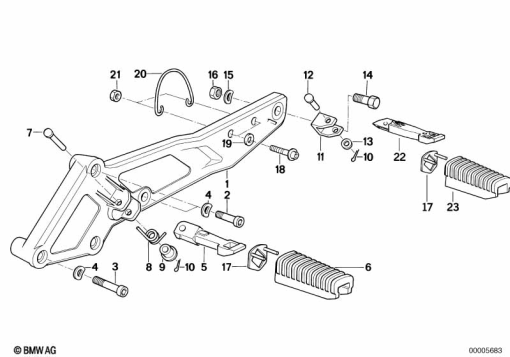

Diagram #46_0186 | 21 parts | 7 available in shop
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 311 507 | PLATE LEFT BLACK RIB UNPAINTED (to 08/92) | 1 | |
| 1 | 46 71 2 311 508 | PLATE RIGHT BLACK RIB UNPAINTED (to 08/92) | 1 | |
| 2 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS (to 08/92) | 1 | |
| 4 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 (to 08/92) | 1 | |
| 5 | 46 71 1 454 253 | FOOTREST, LEFT (to 08/92) | 1 | |
| 5 | 46 71 1 454 254 | FOOTREST, RIGHT (to 08/92) | 1 | |
| 6 | 46 71 1 454 887 | BUSHING (to 08/92) | 1 | |
| 7 | 46 71 1 451 220 | PIN - 8X55 (to 08/92) | 1 | |
| 8 | 46 71 1 451 643 | RETAINER SPRING LEFT (to 08/92) | 1 | |
| 8 | 46 71 1 451 644 | RETAINER SPRING RIGHT (to 08/92) | 1 | |
| 9 | 46 71 1 451 632 | SLEEVE (to 08/92) | 1 | |
| 10 | 07 11 9 905 230 | SPLIT PIN - 2X16 (to 08/92) | 1 | |
| 11 | 46 71 2 310 259 | SUPPORTING BRACKET - BLACK (to 08/92) | 1 | |
| 12 | 46 71 7 717 831 | PIN - D=8MM/L=36MM (to 08/92) | 1 | |
| 13 | 07 14 9 180 923 | WASHER - 8,4X18X2MM (to 08/92) | 1 | |
| 14 | 07 11 9 901 049 | FILLISTER-HEAD SCREW - M10X30-8.8-ZNS (to 08/92) | 1 | |
| 15 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 (to 08/92) | 1 | |
| 16 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 (to 08/92) | 1 | |
| 22 | 46 71 2 310 403 | FOOTREST, REAR LEFT (to 08/92) | 1 | |
| 22 | 46 71 2 310 404 | FOOTREST, REAR RIGHT (to 08/92) | 1 | |
| 23 | 46 71 2 310 401 | FOOTREST RUBBER (to 08/92) | 1 |
