K1100LT (89V2) | Engine
WATERPUMP/OILPUMP - OIL FILTER

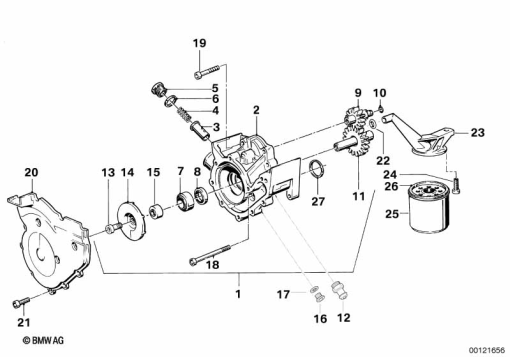

Diagram #11_3505 | 28 parts | 2 available in shop
100%
Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 7 676 366 | PUMP UNIT | 1 | |
| 2 | 11 41 1 461 178 | WATERPUMP HOUSING (from 01/90) | 1 | |
| 3 | 11 41 1 460 258 | PISTON | 1 | |
| 4 | 11 41 1 460 259 | COMPRESSION SPRING | 1 | |
| 5 | 11 41 1 460 483 | SCREW PLUG | 1 | |
| 6 | 07 11 9 963 342 | GASKET RING - A20X24-CU | 1 | |
| 7 | 11 41 1 741 870 | SLIP-RING SEAL | 1 | |
| 1 | 11 51 1 464 902 | SPACER BUSH | 1 | |
| 8 | 11 41 1 460 329 | SHAFT SEAL - 12X25X5 | 1 | |
| 9 | 11 41 1 461 181 | DRIVE SHAFT | 1 | |
| 10 | 11 41 1 460 328 | O-RING - 7-2 | 1 | |
| 11 | 11 41 1 461 183 | SHAFT - Z=32 | 1 | |
| 12 | 12 61 1 277 642 | OIL PRESSURE SWITCH - M12X1,5 | 1 | |
| 13 | 12 31 1 460 853 | SCREW - M8X22 | 1 | |
| 14 | 11 41 1 461 173 | ROTOR | 1 | |
| 15 | 11 51 1 464 902 | SPACER BUSH | 1 | |
| 16 | 07 11 9 904 393 | SCREW PLUG - M10X1-ST-ZNS3 | 1 | |
| 17 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | 1 | |
| 19 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | 1 | |
| 20 | 11 51 1 460 257 | PUMP COVER | 1 | |
| 21 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | 1 | |
| 22 | 11 41 1 460 403 | O-RING - 13,3X2,4 | 1 | |
| 23 | 11 41 1 460 597 | OIL PUMP STRAINER | 1 | |
| 24 | 07 12 9 905 386 | ISA SCREW - M6X30-8.8-ZNNIV | 1 | |
| 25 | 11 42 1 460 845 | OIL FILTER | 1 | |
| 25 | 11 00 2 300 053 | REPAIR KIT FOR OIL CHANGE | 1 | |
| 26 | 11 42 1 461 534 | GASKET RING | 1 | |
| 27 | 11 11 1 460 392 | O-RING - 27,3X2,4 | 1 |
