K1100LT (89V2) | Engine

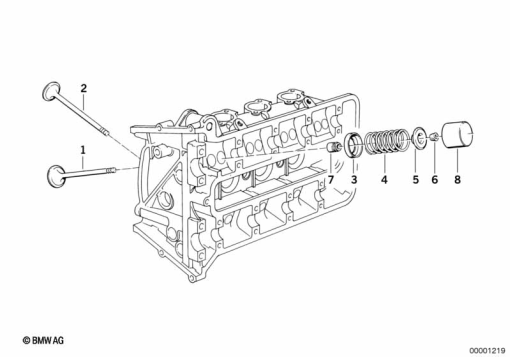

TIMING GEAR - INTAKE VALVE/EXHAUST VALVE
Diagram #11_1841 | 22 parts | 4 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 34 1 461 951 | INTAKE VALVE - D=26,5 | 1 | |
| 2 | 11 34 1 461 952 | EXHAUST VALVE - D=23 | 1 | |
| 3 | 11 34 1 461 562 | SPRING POCKET | 1 | |
| 4 | 11 34 1 464 145 | VALVE SPRING | 1 | |
| 5 | 11 34 1 461 394 | SPRING POCKET | 1 | |
| 6 | 11 34 1 461 405 | VALVE COLLET - D=6 | 1 | |
| 7 | 11 34 1 461 679 | VALVE SEAL RING | 1 | |
| 8 | 11 32 7 666 042 | CAM FOLLOWER - 2,50MM | 1 | |
| 8 | 11 32 7 666 043 | CAM FOLLOWER - 2,55MM | 1 | |
| 8 | 11 32 7 666 044 | CAM FOLLOWER - 2,60MM | 1 | |
| 8 | 11 32 7 666 045 | CAM FOLLOWER - 2,65MM | 1 | |
| 8 | 11 32 7 666 046 | CAM FOLLOWER - 2,70MM | 1 | |
| 8 | 11 32 7 666 047 | CAM FOLLOWER - 2,75MM | 1 | |
| 8 | 11 32 7 666 048 | CAM FOLLOWER - 2,80MM | 1 | |
| 8 | 11 32 7 666 049 | CAM FOLLOWER - 2,85MM | 1 | |
| 8 | 11 32 7 666 050 | CAM FOLLOWER - 2,90MM | 1 | |
| 8 | 11 32 7 666 051 | CAM FOLLOWER - 2,95MM | 1 | |
| 8 | 11 32 7 666 052 | CAM FOLLOWER - 3,00MM | 1 | |
| 8 | 11 32 7 666 053 | CAM FOLLOWER - 3,05MM | 1 | |
| 8 | 11 32 7 666 054 | CAM FOLLOWER - 3,10MM | 1 | |
| 8 | 11 32 7 666 055 | CAM FOLLOWER - 3,15MM | 1 | |
| 8 | 11 32 7 666 056 | CAM FOLLOWER - 3,20MM | 1 |
