Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 00 1 464 589 | BLACK ENGINE - 1100CCM | - | |
11 00 1 464 590 | ENGINE - 1100CCMAlternative for position 1 | - | ||
| 2 | 11 00 1 464 567 | SET: SEAL AND GASKET SET, ENGINE | - | |
| 3 | 11 00 2 300 053 | SET: REPAIR KIT FOR OIL CHANGE | - | |
11 00 2 300 054 | SET: REPAIR SET INSPECTIONAlternative for position 3 | - | ||
11 00 9 062 736 | SET: REPAIR KIT SEAL RINGSAlternative for position 3 | - | ||
| 4 | 07 55 9 062 476 | PASTE MP 3 - 100G | - | |
| 6 | 07 58 0 397 777 | SEALING COMPOUND DOW CORNING - 35ML | - | |
| 7 | 83 21 2 365 963 | MOTOR OIL ADVANTEC 15W-50 - 1L | - |

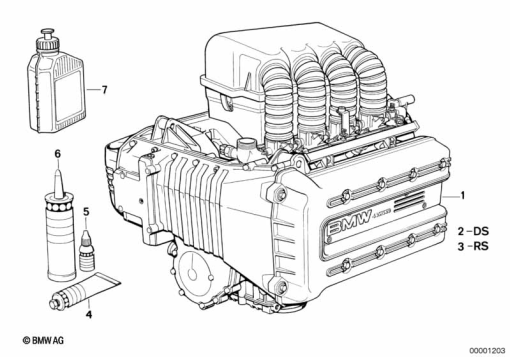

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
