K1100LT (89V2) | Engine

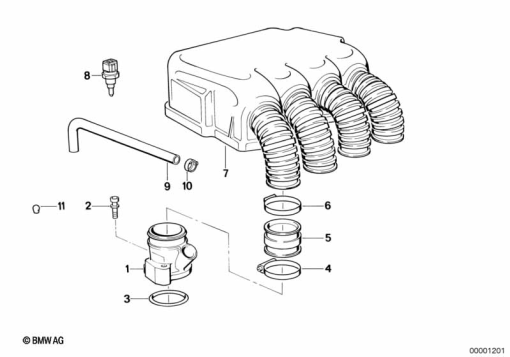

AIR COLLECTOR/INLET MANIFOLD
Diagram #11_1822 | 11 parts | 1 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 61 1 461 621 | INTAKE MANIFOLD | 1 | |
| 2 | 11 13 1 461 343 | SCREW - M6X30 | 1 | |
| 3 | 11 61 1 465 169 | O-RING - 40.3X2.5 | 1 | |
| 4 | 11 61 1 460 940 | HOSE CLAMP - D=46 | 1 | |
| 5 | 11 61 1 461 739 | BUSHING | 1 | |
| 6 | 11 61 1 460 900 | CLAMP - D=48,5 | 1 | |
| 7 | 11 61 1 464 517 | AIR ACCUMULATOR | 1 | |
| 8 | 13 62 1 341 550 | INTAKE AIR TEMPERATURE SENSOR (from 07/93) | 1 | |
| 9 | 13 31 1 461 972 | HOSE | 1 | |
| 10 | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 | 1 | |
| 11 | 13 54 7 694 924 | PROTECTION CAP | 1 |
