K1100LT (89V2) | Engine

CYLINDER HEAD COVER

Diagram #11_1817 | 9 parts

100%

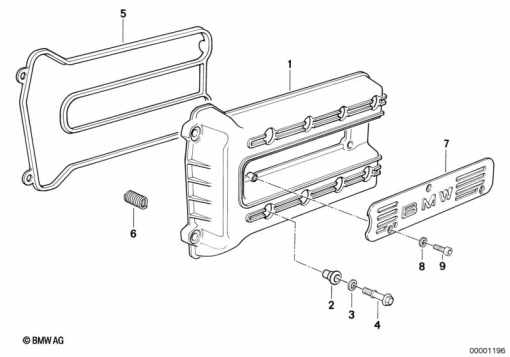

K1100LT (89V2) CYLINDER HEAD COVER exploded view parts diagram

Parts List (9)

#Part NumberDescriptionQty
1
11 12 1 465 081
CYLINDER HEAD COVER, CHROME-
11 12 2 322 276
GROUND BLACK CYLINDER HEAD COVERAlternative for position 1-
2
11 14 1 461 475
RUBBER BUSH-
4
11 14 1 464 235
SCREW-
5
11 12 1 461 396
GASKET, CYLINDER HEAD COVER-
6
11 12 1 460 811
CONTACT SPRING-
7
11 12 1 461 409
COVER-
8
07 11 9 932 073
SPRING WASHER BLACK - B6-ZN-
9
07 11 9 919 800
FILLISTER-HEAD SCREW - M6X12 ZN/SW-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
