K1100LT (89V2) | Engine

CYLINDER HEAD

Diagram #11_1819 | 20 parts

100%

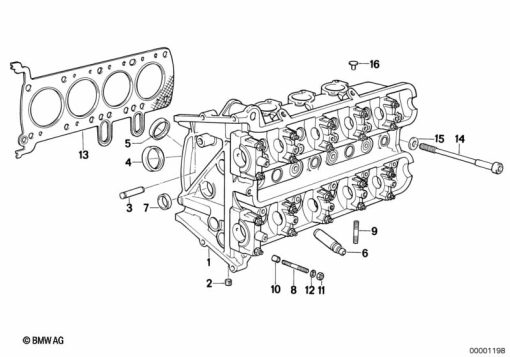

K1100LT (89V2) CYLINDER HEAD exploded view parts diagram

Parts List (20)

#Part NumberDescriptionQty
1
11 12 1 461 550
CYLINDER HEAD-
2
07 11 9 900 458
SCREW PLUG - M8X1-
3
11 12 1 464 134
BOLT-
4
11 12 1 461 299
VALVE SEAT RING INTAKE-
5
11 12 1 461 301
VALVE SEAT RING EXHAUST-
6
11 12 1 461 276
VALVE GUIDE EXHAUST-
11 12 1 461 277
VALVE GUIDE EXHAUST - +0,2Alternative for position 6-
11 12 1 461 561
VALVE GUIDE INLETAlternative for position 6-
11 12 1 461 584
VALVE GUIDE INLET - +0,2Alternative for position 6-
7
11 12 1 733 403
COVER LID - 22,0MM-
8
07 12 9 902 312
STUD BOLT - M6X50-
11 12 1 461 449
STUD BOLT - M6X75Alternative for position 8-
9
07 12 9 908 137
STUD BOLT - M8X55-
10
11 12 1 460 580
DOWEL - 8,5X11,5MM-
11
07 11 9 905 544
HEX NUT WITH PLATE - M6-8-ZNNIV SI-
13
11 12 1 465 139
CYLINDER HEAD GASKET (from 12/94)-
11 12 1 465 139
CYLINDER HEAD GASKET (to 12/94)Alternative for position 13-
-
11 12 1 464 731
SCREW - M10X150 (to 12/94)-
14
11 12 1 464 731
SCREW - M10X150-
15
11 12 1 464 026
WASHER - 10,5X20X3-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
