K1100LT (89V2) | Engine Electrics

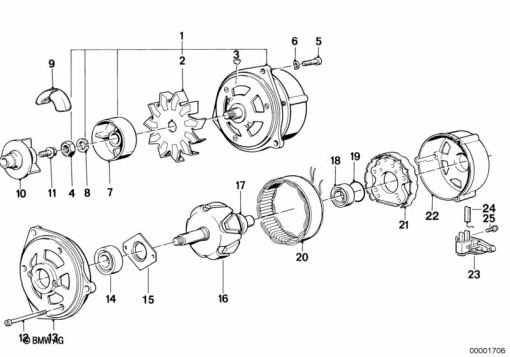

ALTERNATOR, INDIVIDUAL PARTS
Diagram #12_0754 | 25 parts | 4 available in shop
100%
Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 31 2 305 316 | ALTERNATOR - 33A (to 09/92) | 1 | |
| 2 | 12 31 1 459 036 | FAN WHEEL (to 09/92) | 1 | |
| 3 | 07 11 9 951 453 | WOODRUFF KEY - 4X5 (to 09/92) | 1 | |
| 4 | 12 31 1 459 814 | HEX NUT - M16X1,5 (to 09/92) | 1 | |
| 5 | 07 12 9 904 067 | ISA SCREW - M8X30-8.8-ZNS3 (to 09/92) | 1 | |
| 6 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 (to 09/92) | 1 | |
| 7 | 12 31 1 460 302 | CLUTCH HOUSING (to 09/92) | 1 | |
| 8 | 07 11 9 933 155 | SPRING WASHER - B16 (to 09/92) | 1 | |
| 9 | 12 31 1 464 877 | RUBBER MOUNTING (to 09/92) | 1 | |
| 10 | 12 31 1 460 304 | DRIVING DOG (to 09/92) | 1 | |
| 11 | 12 31 1 461 463 | SCREW - M8X40 (to 09/92) | 1 | |
| 12 | 12 31 1 459 289 | FILLISTER-HEAD SCREW (to 09/92) | 1 | |
| 13 | 12 31 1 459 277 | HOUSING ASSY FRONT (to 09/92) | 1 | |
| 14 | 12 31 1 459 278 | GROOVED BALL BEARING (to 09/92) | 1 | |
| 15 | 12 31 1 459 279 | SUPPORTING PLATE (to 09/92) | 1 | |
| 16 | 12 31 1 459 280 | ROTOR (to 09/92) | 1 | |
| 17 | 12 31 1 459 281 | SLIP RING (to 09/92) | 1 | |
| 18 | 12 31 1 714 521 | GROOVED BALL BEARING - 28X12X12 (to 09/92) | 1 | |
| 19 | 12 31 1 276 224 | O-RING (to 09/92) | 1 | |
| 20 | 12 31 1 459 288 | STATOR ASSY (to 09/92) | 1 | |
| 21 | 12 31 1 459 284 | DIODE ASSY (to 09/92) | 1 | |
| 22 | 12 31 1 459 283 | HOUSING ASSY REAR (to 09/92) | 1 | |
| 23 | 12 31 1 459 286 | VOLTAGE REGULATOR (to 09/92) | 1 | |
| 24 | 12 31 1 727 756 | SET: CARBON BRUSH SET (to 09/92) | 1 | |
| 25 | 12 31 1 459 291 | SCREW (to 09/92) | 1 |
