K1100LT (89V2) | Electrical System

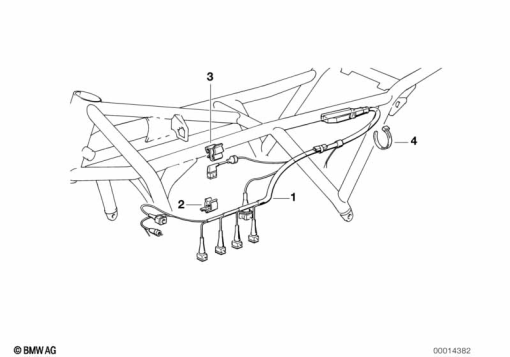

ENGINE WIRING HARNESS
Diagram #61_1080 | 6 parts | 2 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 11 2 305 538 | ENGINE WIRING HARNESS/CATALYST (to 07/93) | 1 | |
| 1 | 61 11 2 305 597 | ENGINE WIRING HARNESS/CATALYST (from 07/93) | 1 | |
| 3 | 07 14 7 547 239 | FIXING CLAMP - A=3,5 - 6,0MM | 1 | |
| 3 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | 1 | |
| 4 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 4 | 61 13 6 924 664 | CABLE STRAP WITH BRACKET - Ø=7,7 / L=200 | 1 |
