K1100LT (89V2) | Electrical System
CHASSIS WIRING HARNESS

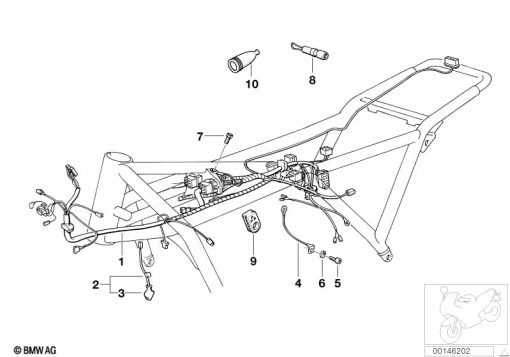

Diagram #61_1081 | 19 parts | 5 available in shop
100%
Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 11 2 305 221 | CHASSIS WIRING HARNESS (to 09/92) | 1 | |
| 1 | 61 11 2 305 222 | CHASSIS WIRING HARNESS / ABS (to 09/92) | 1 | |
| 1 | 61 11 2 305 535 | CHASSIS WIRING HARNESS (09/92 to 07/93) | 1 | |
| 1 | 61 11 2 305 536 | CHASSIS WIRING HARNESS / ABS (09/92 to 07/93) | 1 | |
| 1 | 61 11 2 305 599 | CHASSIS WIRING HARNESS (from 07/93) | 1 | |
| 1 | 61 11 2 305 600 | CHASSIS WIRING HARNESS / ABS (from 07/93) | 1 | |
| 2 | 61 12 7 665 811 | WIRING OIL PRESSURE | 1 | |
| 1 | 12 61 8 611 273 | OIL PRESSURE SWITCH - M12X1,5 | 1 | |
| 3 | 61 13 1 363 318 | PROTECTION CAP | 1 | |
| 4 | 61 12 1 244 577 | BATTERY CABLE NEGATIVE (to 07/93) | 1 | |
| 4 | 61 11 2 305 618 | BATTERY CABLE NEGATIVE (from 07/93) | 1 | |
| 5 | 07 11 9 906 172 | FILLISTER-HEAD SCREW - M6X14-8.8 | 1 | |
| 6 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 6 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 6 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 7 | 07 11 9 915 021 | HEX BOLT WITH WASHER - M6X16-Z3-2 | 1 | |
| 8 | 61 12 1 459 998 | CONTACT RING | 1 | |
| 9 | 61 13 1 459 066 | CABLE GROMMET (to 07/93) | 1 | |
| 10 | 61 13 1 459 048 | PROTECTION CAP | 1 |
