K1100LT (89V2) | Brakes

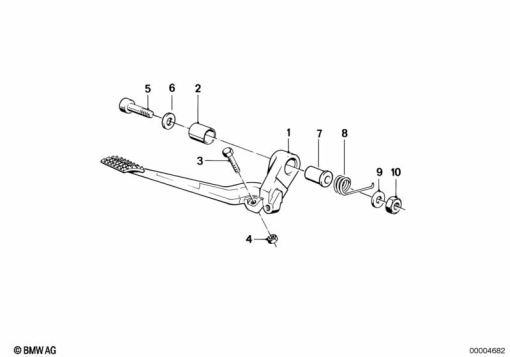

REAR WHEEL BRAKE, BRAKE LEVER
Diagram #34_0624 | 11 parts | 2 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 12 1 450 887 | BRAKE PEDAL | 1 | |
| 2 | 35 21 1 450 231 | BUSHING | 1 | |
| 3 | 07 11 9 904 116 | HEX BOLT - M6X30-8.8-ZNS3 | 1 | |
| 3 | 07 11 9 913 589 | HEX BOLT - M6X25 | 1 | |
| 4 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | 1 | |
| 5 | 35 21 2 310 844 | FILLISTER-HEAD SCREW - M10X50 | 1 | |
| 6 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 7 | 46 71 2 310 700 | BUSHING | 1 | |
| 8 | 35 21 2 310 696 | RETAINER SPRING | 1 | |
| 9 | 46 71 2 312 160 | SHIM - 0,50MM | 1 | |
| 10 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | 1 |
