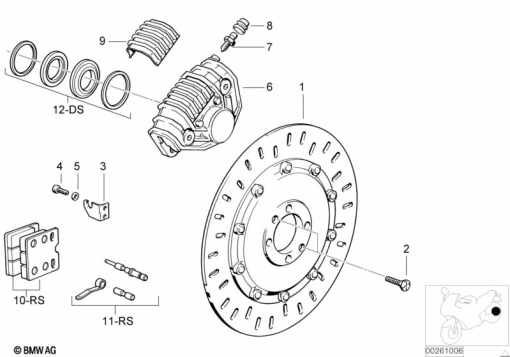

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 2 310 206 | REAR BRAKE DISK BLACK (to 07/93) | - | |
34 21 2 312 226 | REAR BRAKE DISK BLACK (from 07/93)Alternative for position 1 | - | ||
| 2 | 34 21 2 330 021 | COUNTERSUNK HEAD SCREW - M8X20 TUFLOK | - | |
| 3 | 34 51 2 311 021 | BRACKET | - | |
| 4 | 07 11 9 904 253 | FILLISTER-HEAD SCREW - M10X25-8.8-ZNS3 | - | |
| 5 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 6 | 34 21 2 332 459 | BRAKE CALIPER, REAR - D=38 | - | |
| 7 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN | - | |
| 8 | 34 21 1 236 794 | DUST CAP | - | |
| 9 | 34 11 1 454 120 | COVERING CAP - BREMBO | - | |
| 10 | 34 21 7 657 025 | SET: BRAKE PADS KIT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 10 | - | ||
| 11 | 34 11 1 454 005 | SET: SET MOUNTING PARTS | - | |
| 12 | 34 11 2 310 493 | SET: REPAIR SET BRAKE CALIPER | - |
