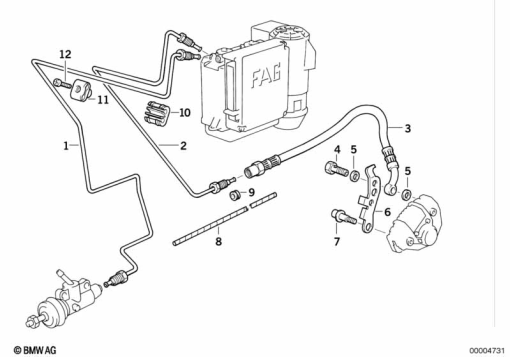

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 2 332 025 | BRAKE PIPE (from 07/93) | - | |
| 2 | 34 32 2 332 029 | BRAKE PIPE (from 07/93) | - | |
| 3 | 34 32 2 332 030 | BRAKE HOSE (from 07/93) | - | |
| 4 | 34 32 1 242 205 | HOLLOW BOLT (from 07/93) | - | |
| 5 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU (from 07/93) | - | |
| 6 | 34 21 2 314 729 | HOLDER (from 07/93) | - | |
| 7 | 34 51 1 457 496 | FIT BOLT (from 07/93) | - | |
34 51 2 310 887 | FIT BOLT - M10X26-8.8 (from 07/93)Alternative for position 7 | - | ||
| 8 | 34 32 2 310 078 | SPIRAL CONDUIT - L=1500MM (from 07/93) | - | |
| 9 | 34 32 1 236 462 | GROMMET (from 07/93) | - | |
| 10 | 34 32 1 107 991 | SPACER HOLDER (from 07/93) | - | |
| 11 | 34 32 2 314 637 | HOLDER (from 07/93) | - | |
| 12 | 07 11 9 900 783 | FILLISTER HEAD SCREW - M4X22 (from 07/93) | - |
