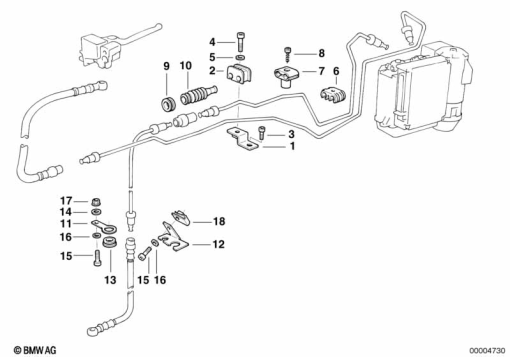

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 2 311 137 | HOLDER (from 07/93) | 1 | |
| 2 | 34 32 1 108 212 | CLAMP (from 07/93) | 1 | |
| 3 | 61 12 2 322 492 | FILLISTER-HEAD SCREW - M6X10 (from 07/93) | 1 | |
| 4 | 46 54 2 322 498 | FILLISTER-HEAD SCREW - M6X18 (from 07/93) | 1 | |
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI (from 07/93) | 1 | |
| 6 | 34 32 1 107 991 | SPACER HOLDER (from 07/93) | 1 | |
| 7 | 34 32 1 458 272 | HOLDER (from 07/93) | 1 | |
| 8 | 07 11 9 900 783 | FILLISTER HEAD SCREW - M4X22 (from 07/93) | 1 | |
| 9 | 34 32 1 236 462 | GROMMET (from 07/93) | 1 | |
| 10 | 12 52 1 714 146 | GROMMET (from 07/93) | 1 | |
| 12 | 34 32 2 312 209 | HOLDER (from 07/93) | 1 | |
| 13 | 34 32 2 310 149 | GROMMET (from 07/93) | 1 | |
| 15 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV (from 07/93) | 1 | |
| 16 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI (from 07/93) | 1 | |
| 18 | 51 12 7 070 202 | C-CLIP NUT - M6-ZNS3 (from 07/93) | 1 |
