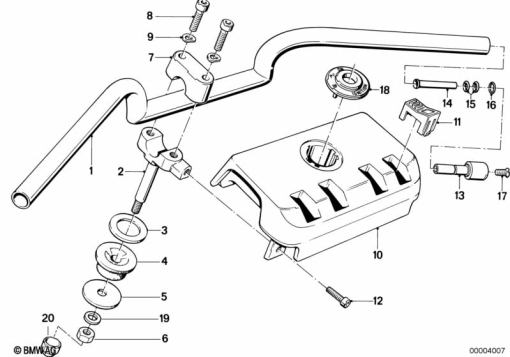

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 2 300 086 | HANDLEBAR, BLACK, RAISED | 1 | |
| 2 | 32 71 2 308 045 | CLAMPING SUPPORT, BOTTOM | 1 | |
| 3 | 32 71 1 451 682 | SHIM, BLACK - 22.5X38X2.5 | 1 | |
| 4 | 32 71 2 307 364 | ABSORBING PIECE | 1 | |
| 5 | 32 71 1 451 683 | SHIM | 1 | |
| 6 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | 1 | |
| 7 | 32 71 1 453 159 | CLAMPING SUPPORT, TOP | 1 | |
| 8 | 07 11 9 920 059 | FILLISTER-HEAD SCREW - M8X35 | 1 | |
| 9 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | 1 | |
| 10 | 32 71 1 459 317 | IMPACT PLATE | 1 | |
| 11 | 32 71 1 459 318 | COVERING CAP | 1 | |
| 12 | 07 11 9 919 792 | FILLISTER-HEAD SCREW - M6X10 | 1 | |
| 13 | 32 71 1 453 246 | BALANCE WEIGHT - D=15,5MM (from 08/83) | 1 | |
| 14 | 32 71 1 453 245 | PIPE - D=15,5MM (from 08/83) | 1 | |
| 15 | 32 71 1 453 247 | O-RING - 10X3 (from 08/83) | 1 | |
| 16 | 32 71 1 453 248 | O-RING - 12X1,5 (from 08/83) | 1 | |
| 17 | 07 11 9 900 138 | COUNTERSUNK HEAD SCREW - M8X25-8.8 | 1 | |
| 18 | 61 32 1 459 319 | STEP PLATE | 1 | |
| 19 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 20 | 46 51 1 234 785 | PROTECTION CAP - M8 | 1 |
