100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 73 1 457 016 | ACCELERATOR BOWDEN CABLE - L=1110MM (to 06/86) | - | |
32 73 1 457 378 | ACCELERATOR BOWDEN CABLE - L=1142MM (from 06/86)Alternative for position 1 | - | ||
| 3 | 32 73 1 457 017 | BUSH | - | |
| 4 | 32 73 1 457 101 | ADJUSTER - M6X0.75 | - | |
| 5 | 32 73 1 236 644 | HEX NUT | - | |
| - | Bing hex. nut (42-605). | Bing hex. nut (42-605). | - | |
| 6 | 13 54 1 461 136 | HOLDER | - |

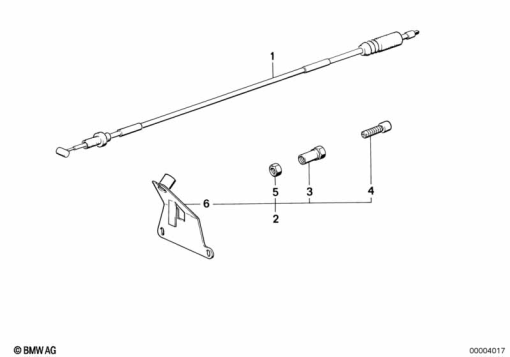

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
