PRIORITY VEHICLE LIGHT MOUNTING PARTS

Diagram #63_1279 | 17 parts

100%

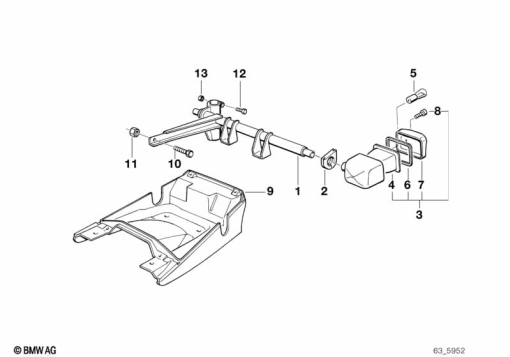

K100 (K589) PRIORITY VEHICLE LIGHT MOUNTING PARTS exploded view parts diagram

Parts List (17)

#Part NumberDescriptionQty
1
65 61 2 300 290
HOLDER-
2
65 61 2 300 312
GROMMET-
3
63 23 1 243 442
TURN INDICATOR - OLSA-
4
63 23 1 243 443
REFLECTOR - OLSA-
5
63 21 7 160 789
BULB - P21W/12V/21W-
63 21 7 160 790
LONGLIFE BULBAlternative for position 5-
63 21 6 926 920
LONGLIFE BULB - P21W/12V/21WAlternative for position 5-
63 21 7 160 790
LONGLIFE BULBAlternative for position 5-
6
63 23 1 243 446
GASKET - OLSA-
7
63 23 1 243 445
LENS - OLSA-
8
07 11 9 907 643
FILLISTER HEAD SCREW - M3,5X25-
9
52 53 2 303 127
TAIL PART LOWER - BLACK MATT-
10
07 11 9 904 357
HEX BOLT - M6X16-8.8-ZNS3-
11
07 12 9 904 876
HEX NUT - M6-8-ZNS3-
07 14 7 575 163
SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 11-
13
07 11 9 905 710
HEX NUT - M5-
-
07 12 9 905 817
HEX NUT-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
