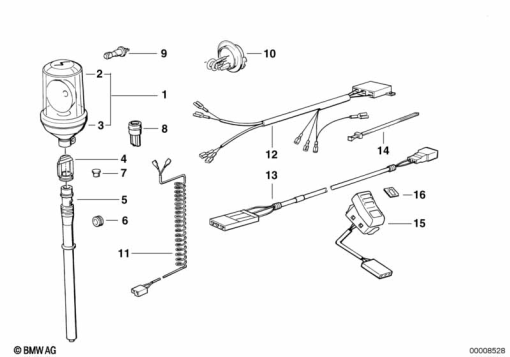

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 17 2 305 637 | PRIORITY VEHICLE LIGHT, BLUE | - | |
63 17 2 305 639 | PRIORITY VEHICLE LIGHT, REDAlternative for position 1 | - | ||
| 2 | 63 17 1 243 975 | LIGHT PROTECTION CAP BLUE - LIGHTA (to 09/93) | - | |
63 17 1 243 977 | LIGHT PROTECTION CAP RED - LIGHTA (to 09/93)Alternative for position 2 | - | ||
| 3 | 63 17 2 315 296 | BLACK PRIORITY WARNING LIGHT SOCKET | - | |
| 4 | 61 13 1 243 841 | PLUG | - | |
| 5 | 71 60 2 303 202 | HOLDER | - | |
| 6 | 61 13 1 243 744 | RUBBER GROMMET | - | |
| 7 | 46 51 1 451 596 | BLIND PLUG | - | |
| 8 | 61 13 1 379 719 | PLUG-IN SOCKET | - | |
| 9 | 63 21 7 160 777 | BULB - 12V 55W H1 | - | |
| 11 | 61 12 1 243 785 | WIRING OFFICIAL SIGNAL LIGHT | - | |
61 12 2 315 263 | CABLE FOR PRIORITY WARNING LIGHTAlternative for position 11 | - | ||
| 12 | 61 12 1 459 557 | WIRING HARNESS TAIL LIGHT | - | |
| 14 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
