K100 (K589) | Fuel Preparation

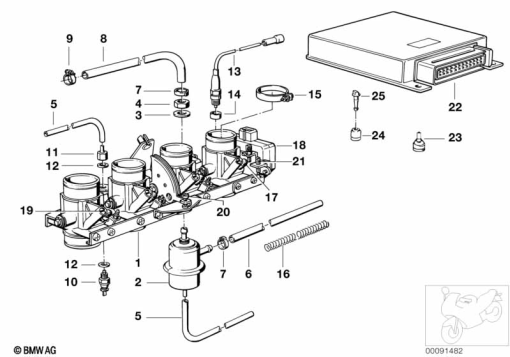

THROTTLE HOUSING ASSY/CONTROL UNIT
Diagram #13_0515 | 28 parts | 5 available in shop
100%
Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 54 1 461 807 | THROTTLE HOUSING ASSY | 1 | |
| 1 | 32 73 1 457 378 | ACCELERATOR BOWDEN CABLE - L=1142MM | 1 | |
| 2 | 13 53 1 460 451 | PRESSURE REGULATOR | 1 | |
| 3 | 07 11 9 906 063 | WASHER - 12-200 HV-ZNS3 | 1 | |
| 4 | 07 11 9 922 940 | HEX NUT - M12X1,5 | 1 | |
| 5 | 11 72 7 545 323 | VACUUM HOSE BLACK - 3,5X1,8 (meter) | 1 | |
| 6 | 16 12 1 180 409 | FUEL HOSE - 8X13MM (meter) | 1 | |
| 7 | 17 12 1 461 500 | HOSE CLAMP - D=12MM - 13,5MM | 1 | |
| 8 | 13 31 1 461 011 | HOSE | 1 | |
| 9 | 13 31 1 460 928 | HOSE CLAMP - D=13 | 1 | |
| 10 | 12 63 1 459 416 | PRESSURE SWITCH (to 04/85) | 1 | |
| 11 | 13 54 1 460 872 | CONNECTOR (to 04/85) | 1 | |
| 12 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL (to 04/85) | 1 | |
| 13 | 61 31 1 459 569 | SWITCH | 1 | |
| 14 | 13 54 1 460 926 | RING (to 08/90) | 1 | |
| 15 | 11 61 1 460 940 | HOSE CLAMP - D=46 | 1 | |
| 16 | 13 54 1 461 531 | SPRING | 1 | |
| 17 | 13 54 7 694 924 | PROTECTION CAP | 1 | |
| 18 | 13 63 1 273 265 | THROTTLE VALVE SWITCH | 1 | |
| 19 | 13 54 1 461 261 | ADJUSTING SCREW | 1 | |
| 4 | 13 11 1 257 819 | GASKET RING | 1 | |
| 20 | 13 54 1 461 237 | ADJUSTING SCREW | 1 | |
| 21 | 13 54 1 461 238 | ADJUSTER | 1 | |
| 22 | 13 61 1 460 950 | CONTROL UNIT L-JETRONIC | 1 | |
| 22 | 13 61 1 461 828 | CONTROL UNIT L-JETRONIC | 1 | |
| 23 | 51 16 1 459 067 | BUMP STOP | 1 | |
| 24 | 51 16 1 459 068 | BUMP STOP | 1 | |
| 25 | 51 16 1 459 069 | 51 16 1 459 069 | 1 |
